ปั๊มอุตสาหกรรม เครื่องเย็น LITTLE GIANT VCMA-PRO Series ออกแบบมาเพื่อรวบรวม และกำจัดน้ำโดยอัตโนมัติ จากเครื่องปรับอากาศ ,เครื่องทำความเย็น ,เครื่องระบายความร้อน เมื่อไม่สามารถระบายน้ำออกตามแรงโน้มถ่วงได้
| Model | HP | Input Voltage | Hz | Amps | Watts | Discharge Size | Check Valve | Overflow Detection Switch |
Cord | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| VCMA-20UL-PRO | 1/30 | 115 | 60 | 1.5 | 93 | 3/8″ (9.5 mm) | 3/8″ (9.5 mm) | No | 6′ (1.8 r m) | 5.5 (2.5 Kg) |
| VCMA-20UL-PRO | 1/30 | 230 | 50/60 | 0.7/0.6 | 75 | 3/8″ (9.5 mm) | 3/8″ (9.5 mm) | No | 6′ (1.8 r m) | 5.5 (2.5 Kg) |
| VCMA-2OULS-PRO | 1/30 | 115 | 60 | 1.5 | 93 | 3/8″ (9.5 mm) | 3/8″ (9.5 mm) | Yes | 6′ (1.8m) | 5.5 (2.5 Kg) |
| VCMA-2OULS-PRO | 1/30 | 230 | 50/60 | 0.7/0.6 | 75 | 3/8″ (9.5 mm) | 3/8″ (9.5 mm) | Yes | 6′ (1.8m) | 5.5 (2.5 Kg) |
| VCMA-20S-PRO | 1/30 | 230 | 50 | 0.7 | 75 | 3/8″ (9.5 mm) | 3/8″ (9.5 mm) | Yes | 6′ (1.8 r m) | 5.5 (2.5 Kg) |
| VCMA-20S-PRO | 1/30 | 230 | 50 | 0.7 | 75 | 3/8″ (9.5 mm) | 3/8″ (9.5 mm) | Yes | 9.8′ (3m) | 6 (2.7 Kg) |
| Model | HP | Input Voltage | Hz | Amps | Watts | Discharge Size |
Check Valve | Overflow Detection Switch |
Cord | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| VCMA-20ULST-PRO | 1/30 | 115 | 60 | 2 | 93 | 3/8″ (9.5 mm) | 3/8″ (9.5 mm) | Yes | 6′ (1.8 m) | 5.5 (2.5 Kg) |
| VCMA-20ULST-PRO | 1/30 | 230 | 50/60 | 0.7/0.6 | 75 | 3/8″ (9.5 mm) | 3/8″ (9.5 mm) | Yes | 6′ (1.8 m) | 5.5 (2.5 Kg) |
| VCMA-20ST-PRO | 1/30 | 230 | 50 | 0.7 | 75 | 3/8″ (9.5 mm) | 3/8″ (9.5 mm) | Yes | 6′ (1.8 m) | 5.5 (2.5 Kg) |
| Model | HP | Input Voltage | Hz | Amps | Watts | Discharge Size | Check Valve | Overflow Detection Switch |
Cord | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| VCMA-20ULS-C-PRO | 1/30 | 115 | 60 | 1.5 | 93 | 3/8″ (9.5 mm) | 3/8″ (9.5 mm) | Yes | 6′ (1.8 m) | 5.5 (2.5 Kg) |
| VCMA-2OS-C-PRO | 1/30 | 230 | 50 | 0.7 | 75 | 3/8″ (9.5 mm) | 3/8″ (9.5 mm) | Yes | 6′ (1.8 m) | 5.5 (2.5 Kg) |

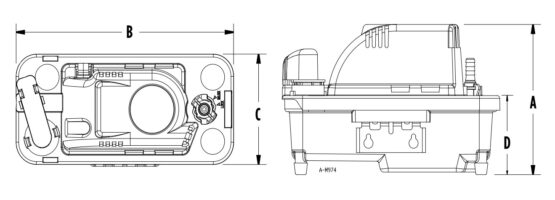

| Model | A | B | C | D |
|---|---|---|---|---|
| VCMA-20UL-PRO | 6.5″ (165.1mm) | 10.2″ (259.1 mm) | 4.8″ (121.9 mm) | 3.4″ (86.4 mm) |
| VCMA-20ULS-PRO | 6.5″ (165.1mm) | 10.2″ (259.1 mm) | 4.8″ (121.9 mm) | 3.4″ (86.4 mm) |
| VCMA-20ULST-PRO | 6.5″ (165.1mm) | 10.2″ (259.1 mm) | 4.8″ (121.9 mm) | 3.4″ (86.4 mm) |
| VCMA-20ULS-C-PRO | 6.8″ (172.7mm) | 10.3″ (261.6 mm) | 5.1″ (129.5 mm) | 3.4″ (86.4 mm) |
