Sprayer Hand Pressure KOSHIN HS Series
Sprayer Hand Pressure KOSHIN HS Series
Sprayer Hand Pressure KOSHIN HS Series
Home Tools and other machine Agricultural equipment and gardening tools Sprayer Hand Pressure KOSHIN HS Series
Submersible pump MITSUBISHI SSP Series
Back to products
Condensate Removal Pump LITTLE GIANT EC-OP-K Series
KOSHIN

Sprayer Hand Pressure KOSHIN HS Series

Use for spraying garden tree insecticides and disinfectants, Spraying insecticides and fungicides for horticulture, For spraying hormones on vegetables, fruits, flowers, etc.

Brand

KOSHIN

ขอใบเสนอราคา/Request a quote
Categories: Agricultural equipment and gardening tools, Tools and other machine
Share:
  • Description
  • SPECIFICATIONS
Description

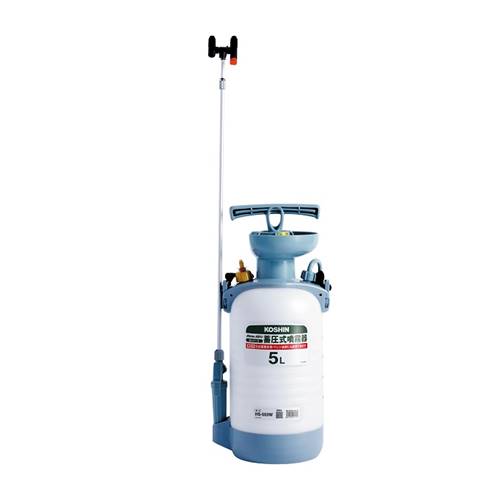

Sprayer Hand Pressure KOSHIN HS Series

HS-401E

  • “One hand operation lever”
  • Easy operation designed for spraying continuously or intermittently.
  • 2-stage extendable nozzle 630 – 1135 mm.
  • Safety valve with simple pressure gauge.
  • Big funnel for easy pouring.

HS-503W/ HS-707W

  • “One hand operation lever”
  • Easy operation designed for spraying continuously or intermittently.
  • 2-stage extendable nozzle 630 – 1135 mm.
  • Safety valve with simple pressure gauge.
  • Big funnel for easy pouring.

Use

  •  For spraying garden tree insecticides and disinfectants
  • Spraying insecticides and fungicides for horticulture
  • For spraying hormones on vegetables, fruits, flowers, etc.
  • Single-headed / double-headed switching cock
  • The amount of spray can be adjusted with a single touch.
  • Safety valve with pressure gauge
  • A pressure gauge is attached to indicate the completion of pressurization at a glance.
  • For peeling agent only



Features

  • Lightweight and convenient to handle
  • Even spraying is possible
  • Large funnel
  • Peeling agent nozzle
  • One-handed operation lever.
  • Y-shaped handle
  • Large funnel
  • One-touch shoulder belt
  • White translucent tank
  • Nozzle stand
SPECIFICATIONS

SPECIFICATION KOSHIN HS Series

Model HS-401E* HS-503W* HS-707W*
Tank Capacity 4 L 5 L 7 L
Hose Length 2 m (6.5 ft) 5 m (16 ft) 5 m (16 ft)
Nozzle Type 1-Head Nozzle 2-Stage Extendable 4-Stage Extendable
  2-Head 2-Head
Total Extendable Length 38 cm (15") 63 – 113.5 cm (24" – 44") 63 – 201 cm (24"–79")
Operating Pressure Around Safety Valve 0.2 MPa (2 kgf/㎠) 0.4 MPa (4 kgf/cm²) 0.4 MPa (4 kgf/㎠)
Spray Area 46 – 59 ㎡ 56 – 72.7 ㎡ 79 – 99 ㎡
Net Weight 0.96 kg (2.1 lbs)(1 unit) 2.7 kg (5.9 lbs)(1 unit) 2.8 kg (6.17 lbs)(1 unit)
Gross Weight 8.5 kg (18.7 lbs)(6 units) 13.4 kg (29.5 lbs)(4 units) 14.8 kg (32.6 lbs)(4 units)
Dimensions L×W×H (mm) 610× 410× 410 411 × 411 × 653 411 × 411 × 653
Packing Unit 6 4 4
*Japanese Domestic Model
