Submersible Pump TSURUMI C Series
Home Submersible pump/Sewage pump Submersible Pump TSURUMI C Series
ANNOVI REVERBERI RHW 13.17 N | 228 Series
Back to products
Motor MITSUBISHI SF-JR IP44 Series
Motor MITSUBISHI SF-JR IP44 Series
TSURUMI

Submersible Pump TSURUMI C Series

Tsurumi C Serie pump are heavy-duty, submersible cutter pumps for sewage and wastewater, which are made of castings and equipped with cutting mechanism. Featuring a combination of impeller vane with brazed sintered tungsten carbide alloy edge and a suction cover of serrated shape, the C Series Pumps enable smooth pumping, while cutting fibrous foreign objects during suction. These pumps have been used to drain sewage and wastewater from buildings and kitchens, and to transfer sewage and wastewater in water treatment facilities of factories and commercial complexes.

Brand

TSURUMI

ขอใบเสนอราคา/Request a quote
Category: Submersible pump/Sewage pump Tags: Divo pump, Mud Pump, Pump, Sewage pump, Submersible pump, TSURUMI, waste water pump, Water pump
Share:
  • Description
  • SPECIFICATIONS
Description

Submersible Pump TSURUMI C Series

TSURUMI C series comes in a wide product lineup, covering discharge bore diameters of 50 to 200 mm and motor outputs of 0.75 to 37 kW. TSURUMI C series integrate original technologies that Tsurumi has researched and proven in the field over many years, such as anti-wicking cable, dual inside mechanical seals with silicone carbide face and Oil Lifter, etc. Furthermore, durability and wear resistance have been thoroughly considered in their design, so these pumps enable continuous duty over long periods of time. Tsurumi products are designed to provide excellent durability and sound quality, thus contributing to the stable operation of facilities and enabling a considerable reduction in maintenance cost.

TECHNICAL SPECIFICATION

  • Single and multi-vane cast iron impellers with tungsten carbide tips
  • Serrated suction cover is field replaceable/adjustable
  • Built-in thermal protector prevents motor failure due to overloading or accidental run-dry conditions.
  • Handles residential, commercial, and indiustrial sewage
  • Ideal for poultry, dairy. hog, and fish waste processing
  • Suitable for problem sump applications with unpredictable solids incursion found in schools, hospitals, industrial laundries
  • High head capabilities available on certain models

Dimension

TSURUMI C Series

Performence Curve

TSURUMI C

TSURUMI C Series 1

SPECIFICATIONS

SPECIFICATION TSURUMI C SERIES

Discharge Bore Model Motor Output Phase Starting Method
(mm) (kW)
100 TSURUMI 100C42.2 2.2 Three D.O.L.
100 TSURUMI 100C43.7 3.7 Three D.O.L.
100 TSURUMI 100C45.5 5.5 Three D.O.L.
100 TSURUMI 100C47.5 7.5 Three D.O.L.
100 TSURUMI 100C411 11 Three Star-Delta
100 TSURUMI 100C415 15 Three Star-Delta
150 TSURUMI 150C611-CR 11 Three Star-Delta
150 TSURUMI 150C615-CR 15 Three Star-Delta
200 TSURUMI 200C437-CR 37 Three Star-Delta

DIMENSION TSURUMI C SERIES

Discharge Bore (mm) Model Dimension LxH mm
Standard Model Automatic &Auto-Altenation Model
Free Standing Guide Rail Fitting Free Standing Guide Rail Fitting
  TOS TS TOS TS
50 TSURUMI 50C2.75S 405×523 621×566 398×566 405×580 621×624 398×623
50 TSURUMI 50C2.75 405×415 621×458 398×458 433×496 649×539 426×539
80 TSURUMI 80C21.5 446×536 668×586 515×586 485×630 707×680 554×680
100 TSURUMI 100C42.2 594×616 754×631 599×631 – – –
100 TSURUMI 100C43.7 599×690 759×700 604×700 – – –
100 TSURUMI 100C45.5 686×908 905×906 710×906 – – –
100 TSURUMI 100C47.5 686×929 905×927 710×927 – – –
100 TSURUMI 100C411 710×1000 928×998 733×998 – – –
100 TSURUMI 100C415 707×1080 926×1078 – – – –

Reviews

There are no reviews yet.

Be the first to review “Submersible Pump TSURUMI C Series” Cancel reply

Your email address will not be published. Required fields are marked *

Related products

tsurumi-en
Submersible Pump TSURUMI MG Series

Submersible Pump TSURUMI MG Series

TSURUMI
Quick view
tsurumi-en

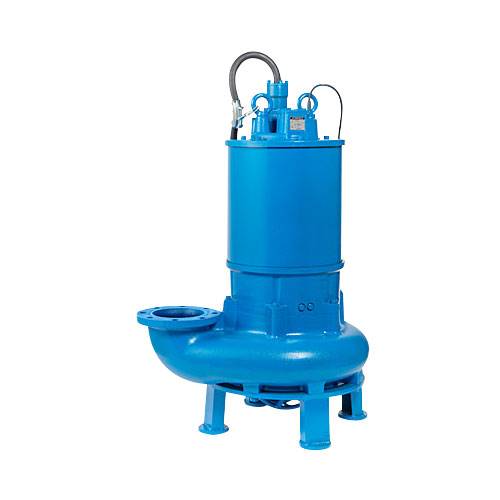

Slurry Pump TSURUMI GSZ 6 Series
